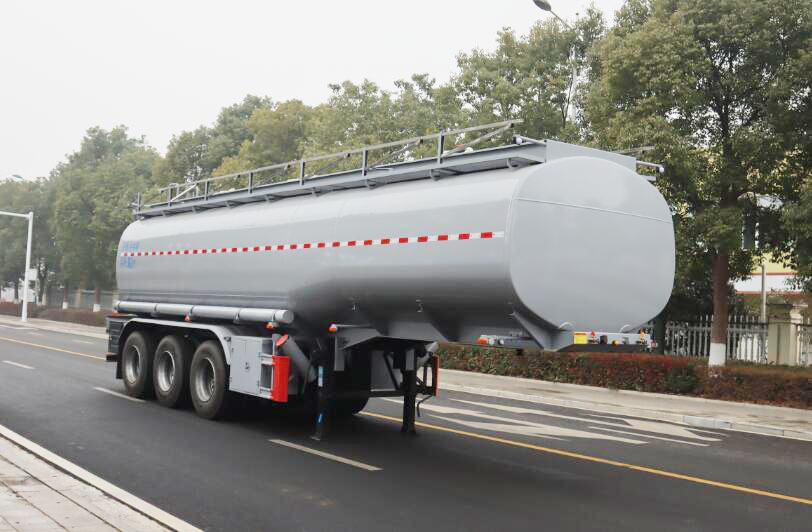

38 cubic meters 40-ton General Liquid Transport Semi-trailer
Classification:
Loading Capacity: 40-ton
Application: 38 cubic meters
It is an efficient and environmentally friendly special vehicle designed for ordinary liquid (such as water purification agent
PRODUCTS
Details Introduction
Ordinary liquid transport semi-trailer:
It is an efficient and environmentally friendly special vehicle designed for ordinary liquid (such as water purification agent, sewage and other non-hazardous chemical liquids) transport. Large capacity tanks and optimized discharge systems significantly improve the efficiency of liquid transportation.
Overall Dimensions: 10000×2500×3800 mm (L × W × H)
Gross Vehicle Weight Rating：40000 kg
Rated Payload Capacity：31000 kg
Curb weight: 9000 kg
wheelbase: 4680+1310+1310 mm
tire specifications: 12R22.5 12PR or 11.00R20 12PR, total tank capacity: 38.2 cubic meters, effective volume is 36.29 cubic meters
tank size: 9600×2490×1860/2050 mm (long × long axis × short axis)
transport medium: Transport of non-hazardous chemical liquids with a maximum density of 850 kg/m3 is permitted. The side protection and the rear lower protection material are Q235, which are connected by bolts and welding. The section size of the rear lower protection device is 90×130 mm, and the height from the ground is 480 mm.
Detail Image
Keyword:
General Liquid Transport Semi-trailer
WHY
CHOOSE US
One stop procurement platform
Your one-stop procurement platform for specialized vehicles. Serve domestic and international markets with excellent quality!
To provide you with reliable solutions
Mingyang, Hubei, offers an excellent experience in high-performance specialized vehicles. We provide reliable solutions for you, from sprinkler trucks to clearing vehicles!
Trusted by customers
A leader in the field of specialized vehicle sales! Brands trusted by domestic and foreign customers, such as oil tankers and water tankers!
All round demand
Explore the new future of transportation with Mingyang, Hubei! Road sweepers, sewage suction trucks, etc., meet your all-round needs!
Meet your diverse needs
Hubei Mingyang is your trusted partner for various high-quality models such as fire trucks and emergency rescue vehicles, meeting your diverse needs.
Innovative leader in specialized vehicles
Innovative leader in specialized vehicles! Water tank trucks, oil tank trucks, RVs, and on-board cranes are all available!
FACTORY
STRENGTH
APPLICATION
FAQ
Q
vehicle transport platform can not lift?
+
A
Check hydraulic system, replenish hydraulic oil or replace hydraulic pump.
Check limit switches and control circuits and repair or replace faulty components.
Inspect mechanical parts, clean stuck parts or replace damaged parts.
Through the above solutions and daily maintenance suggestions, you can effectively reduce the problems in the use of vehicle carriers, improve customer satisfaction and equipment service life. If you need more detailed technical support, it is recommended to contact the equipment supplier or professional maintenance team.
Q
The vehicle shakes during driving?
+
A
Balancing the tires or replacing badly worn tires.
Check suspension system and replace damaged shock absorbers.
Check the drive shaft and universal joints and repair or replace them if necessary.
Q
hydraulic system failure?
+
A
Check the hydraulic oil level and cleanliness, and replace or replace the hydraulic oil.
Inspect hydraulic pumps and cylinders and replace damaged parts if necessary.
Check hydraulic lines to repair leaks or clear blockages.
Q
Brake system failure?
+
A
Check and replace worn brake pads regularly.
Check the brake oil level, replenish or replace the brake oil, and repair the oil leak.
Exhaust the brake system to ensure the braking effect.
Q
The vehicle cannot start?
+
A
Check the battery level and charge or replace the battery if necessary.
Check ignition system and replace damaged parts.
Check the fuel system, clean or replace the fuel filter, and ensure that the fuel pump is working properly.
